久保田 U40 二手挖掘机 - No. 24106-0

　　Kubota U40 used excavator - No. 24106-0

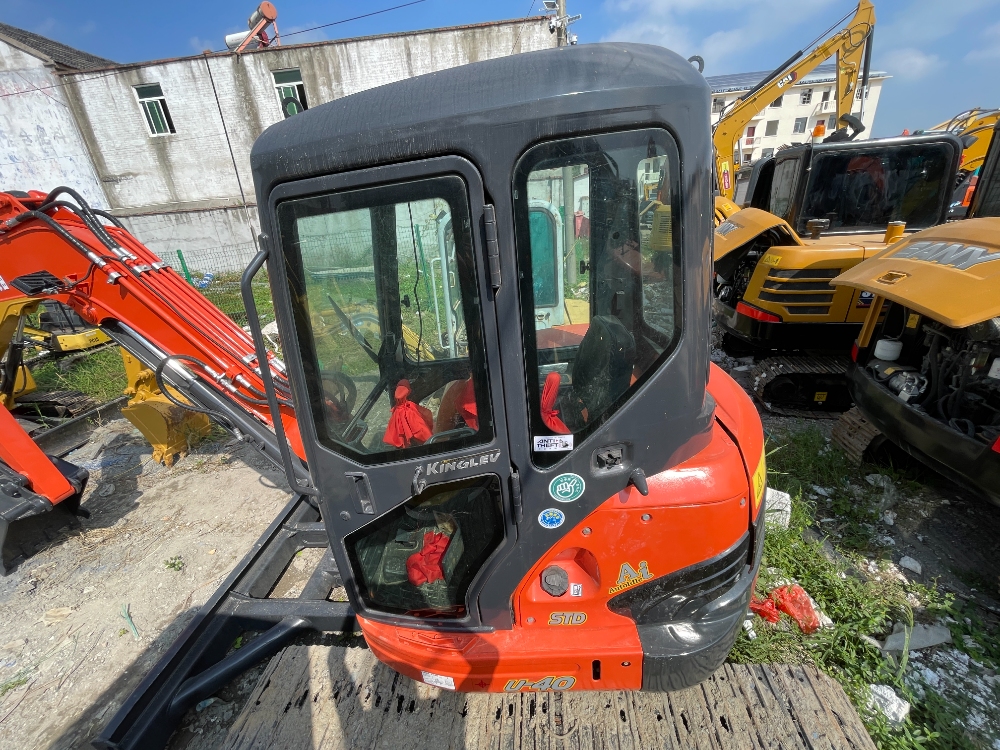

　　In order to meet the export customs declaration standards, we repainted it. It is equipped with a Kubota D1703-M-E3 engine with a power of 29.4Kw and a bucket capacity of 0.12m³. As a short-tailed Mini excavator, it has sufficient performance. It has its own cockpit and air conditioning system. The internal structure layout is perfect and has a good heat dissipation channel. For a compact excavator, Kubota does have very excellent technology. The current market reference price of Tiedou second-hand excavators is: 13.000-20.000 US dollars, which is very suitable for various municipal and infrastructure construction.

　　We tested the No. 24106-0 Kubota U40 and have detailed test records. For compact excavators, we focused on the temperature and performance of the excavator during use. The performance of each test met the use requirements. The operator gave a high evaluation of the Kubota experience, smooth operation, coordinated movements, excellent rotation, movement and excavation performance. This excavator equipped with a Kubota engine has excellent fuel economy. Tiedou highly recommends it as your first choice.

Item	Specifications
Brand	Kubota
Model	U40
Operating Weight	4,000 kg
Bucket Capacity	0.12 m³
Boom Length	2,300 mm
Arm Length	1,200 mm
Manufacturer	Kubota Corporation
Swing Speed	9 rpm
Travel Speed	2.5-4.5 km/h
Gradeability	30°
Ground Pressure	28 kPa
Bucket Digging Force	30 kN
Arm Digging Force	20 kN
Engine Model	Kubota D1703-M-E3
Engine Power	29.4 kW / 2,400 rpm
Displacement	1.647 L
Number of Cylinders	3
Bore x Stroke	87 x 92.4 mm
Hydraulic Pump Brand/Model	Kubota Hydraulic Pump
Maximum Hydraulic Flow	88 L/min
Travel Hydraulic Circuit Pressure	20.6 MPa
Control Hydraulic Circuit Pressure	16.2 MPa
Fuel Tank Capacity	60 L
Hydraulic Oil Tank Capacity	50 L
Engine Oil Change Capacity	7.2 L
Coolant Capacity	5 L
Transport Length	5,400 mm
Transport Width	1,960 mm
Transport Height	2,550 mm
Track Shoe Width	400 mm
Track Length	2,500 mm
Maximum Digging Radius	5,900 mm
Maximum Digging Depth	3,500 mm
Maximum Digging Height	5,800 mm
Maximum Dumping Height	4,100 mm
Maximum Vertical Digging Depth	3,200 mm
Fuel Consumption	5.2 L/h
Air Conditioning	Standard
Fuel Injection	Direct Injection
Maintenance Interval	250 hours
New Machine Price (USD)	45,000 - 50,000 USD
Used Machine Price (USD)	13,000 - 20,000 USD
