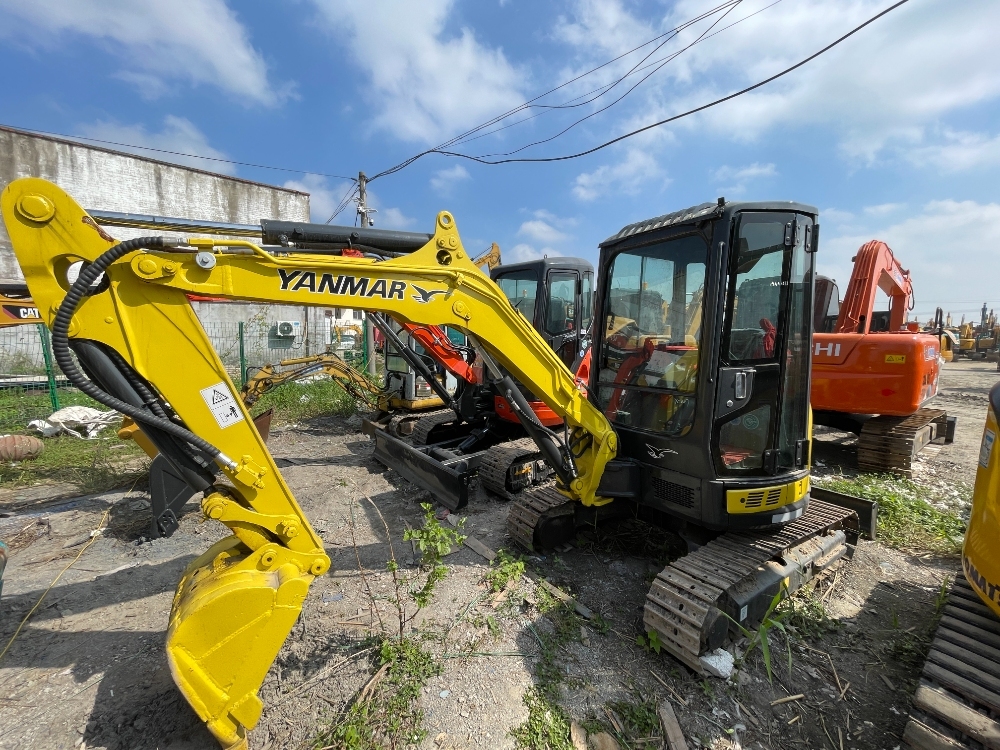

　　Yanmar vio35-6 used excavator - No. 24108-0

　　Yanmar compact short-tail 35Mini excavator, equipped with Yanmar 3TNV88 engine, power 19.2Kw standard bucket capacity 0.14m³, Yanmar is a very early entry into the Mini compact excavator market, with rich product and technology accumulation, equipped with Yanmar self-developed engine performance tuning and stability are excellent, but it is not a new model so it cannot be compared with the new model in technology, the price is currently less than 14.500 US dollars, the cost performance is high and worth buying.

　　The model has passed the Tiedou performance test. For the test standard of Yanmar 35 excavator, we have tested the load pressure, engine temperature, power output stability of the excavator during long-term work through more than 5 hours of simulated work test, engine noise, temperature, environmental emissions, hydraulic flow and vulnerable parts and wear conditions through equipment and manual inspection to meet the use requirements, suitable for farms, manors, urban infrastructure and small projects, low fuel consumption, low failure rate, and cheap later maintenance.

Item	Specification
Brand	Yanmar
Model	VIO35-6
Operating Weight	3,530 kg
Bucket Capacity	0.14 m³
Boom Length	2,500 mm
Arm Length	1,310 mm
Manufacturer	Yanmar Co., Ltd.
Swing Speed	9.5 rpm
Travel Speed	2.7-4.4 km/h
Gradeability	30°
Ground Pressure	29.5 kPa
Bucket Digging Force	30.4 kN
Arm Digging Force	20.9 kN
Engine Model	Yanmar 3TNV88
Engine Power	19.2 kW (26 HP) / 2,400 rpm
Displacement	1.642 L
Number of Cylinders	3
Bore and Stroke	88 mm x 90 mm
Hydraulic Pump Brand	Yanmar
Hydraulic Pump Model	Variable Displacement Axial Piston Pump
Max Hydraulic Flow	94.4 L/min
Travel Hydraulic Circuit	22.6 L/min
Control Hydraulic Circuit	71.8 L/min
Fuel Tank Capacity	42 L
Hydraulic Oil Tank Capacity	47 L
Engine Oil Capacity	6.2 L
Coolant Capacity	3.7 L
Transport Length	4,615 mm
Transport Width	1,740 mm
Transport Height	2,490 mm
Track Shoe Width	300 mm
Track Shoe Length	2,200 mm
Maximum Digging Radius	5,200 mm
Maximum Digging Depth	3,100 mm
Maximum Digging Height	4,700 mm
Maximum Dumping Height	3,500 mm
Maximum Vertical Digging Depth	2,400 mm
Fuel Consumption	5-7 L/h
Air Conditioning	Standard
Fuel Injection	Direct Injection Engine
Maintenance Interval	500 hours
New Machine Price	$35,000 - $45,000
Used Machine Price	$13,500 - $25,000
